Kreidler 5 Gears Direct | Exploded view

Kreidler 5 Gears Direct | Exploded view

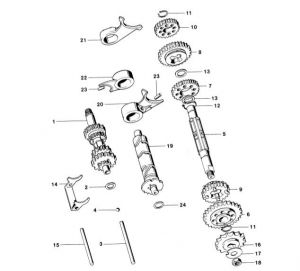

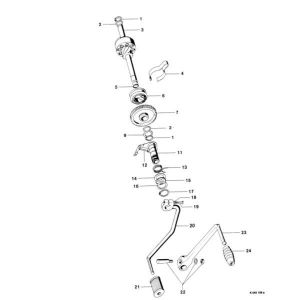

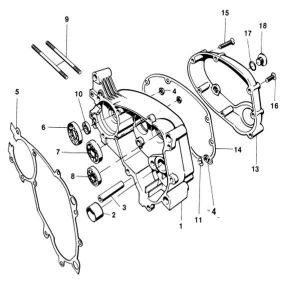

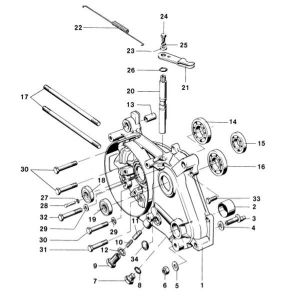

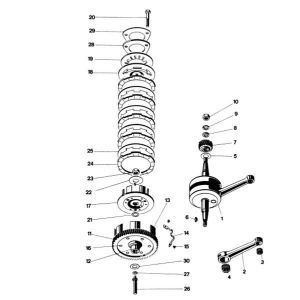

Technical drawings, exploded views for Kreidler mopeds with direct transmission

Do you own a Kreidler moped with five gears and direct gears? All technical information you are looking for of these popular oldtimer mopeds can be found online here! This way you can order your parts quickly and cheaply via detailed technical drawings of, among other things, the engine block, cylinder, clutch and gearbox of direct-geared Kreidler mopeds.

All parts on drawing

For every Kreidlers fan who regularly carries out maintenance on these beautiful mopeds, we have a complete range of exploded views of all crucial parts. All drawings are very complete and detailed. They help to independently disassemble, restore and assemble parts in the right way. All parts are numbered and provided with a description. This way you can always be sure that you are ordering the right parts.

Order quickly

And the great thing is: you can order all parts described in the drawings directly online in our webshop. So you don't have to search for the different parts shown in the drawings yourself, we have already done that for you. You just have to enter the quantities of the parts you need and pay online. We will then ensure fast shipping so that you have everything at home quickly!

7 Items
