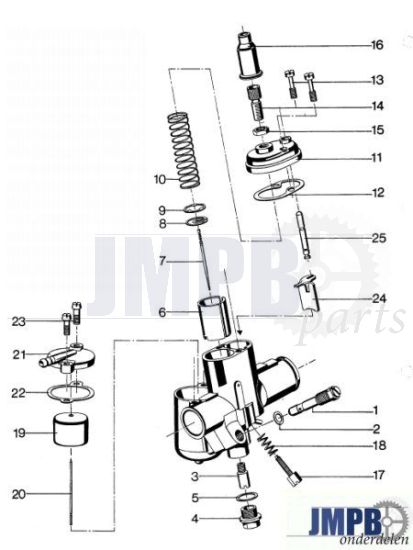

Exploded view bing 17MM Zundapp 1/17/41

Be the first to review this product Be the first to review this product

Grouped product items
Product Name	Qty
1 - Main Jet Kit Bing 26MM 48-54 Main jet / nozzle set Bing old model short Length 26MM Rubber ring included For Bing carburettors with side float Set contains: 48 50 52 54 For a.o.: Puch MS/VS/MV etc. Tomos 2L/3L/4L Zundapp See images for sizes DKK 191.10
1 - Main Jet Kit Bing 26MM 56-62 Main jet / nozzle set Bing old model short Length 26MM Rubber ring included For Bing carburettors with side float Set contains: 56 58 60 62 For a.o.: Puch MS/VS/MV etc. Tomos 2L/3L/4L Zundapp See images for sizes DKK 191.10
1 - Main Jet Kit Bing 26MM 64-70 Main jet / nozzle set Bing old model short Length 26MM Rubber ring included For Bing carburettors with side float Set contains: 64 66 68 70 For a.o.: Puch MS/VS/MV etc. Tomos 2L/3L/4L Zundapp See images for sizes Special Price DKK 77.60 Regular Price DKK 191.10
1 - Main Jet Kit Bing 26MM 72-78 Main jet / nozzle set Bing old model short Length 26MM Rubber ring included For Bing carburettors with side float Set contains: 72 74 76 78 For a.o.: Puch MS/VS/MV etc. Tomos 2L/3L/4L Zundapp See images for sizes Special Price DKK 77.60 Regular Price DKK 191.10
1 - Adjustable Nozzle 17MM Bing Adjustable Nozzle Fits on: Bing 17MM Zundapp carburettor Bing 12/15MM Puch MV carburettor See images for sizes DKK 69.80
3 - Needle Jet 2.20 Bing 17MM Needle jet Size 2.20 For a.o: Bing 1/17/37 Bing 1/17/41 DKK 46.40
4 - Drain plug bolt Bing 17MM Zundapp / 15MM Puch MV Drain plug bolt Bing M10X1 17MM Zundapp 15MM Puch MV DKK 30.81
5 - Fiber ring 17MM Bing Zundapp Fiber ring Fits on; Bing 17MM Zundapp DKK 1.95
6 - Throttle Drum Bing 17MM Throttle drum Bing 17MM Fits on; 17MM Bing Puch Monza 17MM Bing Kreidler 17MM Bing Zundapp DKK 58.50
7 - Throttle Needle Bing 17MM Throttle needle Bing 17MM Fits on; 17MM Bing Puch Monza 17MM Bing Kreidler 17MM Bing Zundapp DKK 37.05
8 - Throttle needle clip Bing 12-15-17MM Throttle needle clip For; Bing 12MM Puch Maxi / Zundapp Bing 15MM Puch Maxi / Zundapp Bing 17MM Puch Monza Bing 17MM Kreidler Bing 17MM Zundapp DKK 11.70
9 - Spring Plate throttle slide Bing 12-15-17MM Spring plate throttle slide Bing For; Bing 12MM Puch Maxi / Zundapp Bing 15MM Puch Maxi / Zundapp Bing 17MM Puch Monza Bing 17MM Kreidler DKK 7.02
10 - Throttle drum spring Bing 17MM Throttle drum spring Bing 17MM Fits on: 17MM Bing Puch Monza 17MM Bing Kreidler 17MM Bing Zundapp See images for sizes DKK 7.41
12 - Throttle Drum Cover Gasket Bing 17MM Throttle drum cover gasket Usable for; Bing 17MM Puch Monza Bing 17MM Kreidler See images for sizes DKK 7.41
13 - Bolt Throttle Cover Bing 10-12-15-17MM Bolt throttle cover For; Bing 12MM Puch Maxi / Zundapp Bing 15MM Puch Maxi / Zundapp Bing 17MM Puch Monza Bing 17MM Zundapp Bing 17MM Kreidler Bing 10MM Kreidler 1-10-77 DKK 5.46
15 - Adjustment nut Bing 10-12-15-17MM 6MM Adjustment nut Bing 6MM ( Nr 15 of the extra picture ) Fits on; Bing 12MM Puch Maxi / Zundapp Bing 15MM Puch Maxi / Zundapp Bing 17MM Puch Monza Bing 17MM Kreidler Bing 17MM Zundapp Bing 10MM Kreidler 1-10-77 DKK 6.63
16 - Cable Hat Dellorto / Bing Cable hat To use on various types of carburetors Dellorto PHBG Dellorto SHA Bing 10MM Bing 12-15MM Bing 17MM DKK 12.48
17 - Idle Adjusting Screw Bing 17MM Zundapp Idle adjustment screw Fits on: Bing 17MM Zundapp DKK 13.65
18 - Idle Adjusting Screw Spring Bing 17MM Zundapp Idle adjusting screw spring Fits on: Bing 17MM Zundapp DKK 5.85
19 - Float Bing 17MM Zundapp Float Bing 17MM Fits on; Bing 17MM Zundapp ( 1/17/41 ) Diameter 26MM Height 22MM Length needle 42MM DKK 42.90
21 - Float Bowl Lid Bing 17MM Zundapp Float Bowl Lid Bing 17MM Zundapp Fitting for: Bing 17MM Zundapp See images for sizes DKK 46.40
22 - Float Gasket Bing 17MM Zundapp Floater gasket Bing 17MM. Fits; 17MM Bing Zundapp DKK 8.58
